MISS 2D spectrometer
Acquire spatially-resolved spectrum of laser beams
MISS (Mini Imaging Spatial Spectrometer) gives access to the spatially-resolved (2D) spectrum of laser beams. Thanks to its unique compactness, MISS allows vertical and horizontal spatial chirp measurements at any position of your beam path. It can easily be integrated at different stages of amplified laser systems. It can be used in free-space mode to take benefit of the spatial resolution, or conveniently with a fiber input, like a regular spectrometer (plug & play SMA fiber connector included).
From UV to SWIR
Different models from 240 to 1700 nm. Easily customizable
High resolution
2D : spatial and spectral resolution
Compact footprint
Can be placed anywhere in the beam path
Spatial chirp measurement
Horizontal and vertical
Spatially-resolved spectrum of a white light continuum
Chengyong FengResearcher - LLE University of Rochester - USA
Our MISS imaging spectrometer is very easy to use and much more compact than the other similar systems we have in our group. I also appreciate the very quick support from the team.
Roland NagymihályArea manager of High Field Laser Laboratory - ELI ALPS - Hungary
Our MISS-Broadband-L and MISS-VSWIR imaging spectrometers are extremely useful to diagnose our few-cycle light sources, even after post-compression. The spatio-spectral resolution allows to check the pulse quality both in near and far field, that gives an unmatched performance for measuring the spatio-spectral distortions of ultrashort pulses.
2D spectrum characterization for many common types of lasers
A conventional spectrometer allows you to know the spectrum for your laser, i.e. the intensity of each wavelength (or frequency) present in your laser. Most of regular spectrometers give an average spectrum (1D), where imaging spectrometer allows you to know the spectrum at different positions along the laser beam cross-section (2D).
Our MISS spectrometer gives you a two dimensions image, one dimension being the position in one diameter of the beam, the other being the spectrum at this position.
2D imaging spectrometers therefore perform a spatially resolved spectral characterization of lasers, which is very helpful for investigation of spatio-spectral couplings such as the spatial chirp usually induced in the compressor stages of ultrafast lasers or during the amplification stage of broadband spectrum.
Specification
| MISS models | UV-VIS | IR | Yb | TiSa | UV-VIS-L | IR-L | TiSa-L | Broadband-L |
|---|---|---|---|---|---|---|---|---|
| Type | Standard beam size | Large beam (L) | ||||||
| Spectral range (nm) | 240 - 800 | 545 - 1100 | 900 - 1090 | 725 - 875 | 250 - 700 | 650 - 1100 | 360 - 1040 | 280 - 1095 |
| Camera resolution | 2056 x 1542 3 Mpx | 2056 x 1542 3 Mpx | 2056 x 1542 3 Mpx | 2056 x 1542 3 Mpx | 2448 x 2048 5 Mpx | 2448 x 2048 5 Mpx | 2448 x 2048 5 Mpx | 5472 x 3478 20 Mpx |
| Spectral sampling (nm/px) | 0.29 | 0.27 | 0.11 | 0.11 | 0.23 | 0.22 | 0.28 | 0.16 |
| Optical spectral resolution (nm) 1 | < 1 | < 0.8 | < 0.35 | < 0.45 | 1 - 1.5 | 1 - 1.3 | 1 - 1.5 | 0.6 - 1.1 |
| Input beam size (mm) | > 6.3 | > 8.6 | > 12.5 | |||||
| Max spatial resolution (μm) | < 4.5 | 5.2 | 6.5 | 3.6 | ||||
| Exposure time min – max (ms) | 0.024 - 1 000 | 0.013 - 1 000 | 0.0112 - 1 000 | |||||
| Shutter type | Global | Rolling | ||||||
| Detection | CMOS 12 Bits – 72 dB | |||||||
| PC Interface | USB 3.1 | |||||||
| Dimensions (mm) | 102 x 101 x 52 | 117 x 102 x 52 | ||||||
2 Due to rolling shutter, the actual minimum exposure time to properly capture the whole beam will be limited by the laser beam size (in case of single-shot measurement) or by the laser repetition rate. For single-shot measurement : the larger the beam, the longer the required minimum exposure time. Otherwise, the slower the repetition rate, the longer the required minimum exposure time.
Custom versions available on request.
| MISS models | SWIR 320 | SWIR 640 | SWIR 1280 | VSWIR 656 / L | VSWIR 1296 / L |
|---|---|---|---|---|---|
| Accessible spectral range (nm) | 900 - 1700 | 400 - 1700 | |||
| Typical spectral window Δλ (nm) | 500 | 775 | 800 | 250 / 350 | 500 / 700 |
| Camera resolution | 320 x 256 0.08 Mpx | 640 x 512 0.3 Mpx | 1280 x 1024 1.3 Mpx | 656 x 520 0.3 Mpx | 1296 x 1032 1.3 Mpx |
| Spectral sampling (nm/px) | 1.7 | 1.2 | 0.7 | 0.4 - 0.6 | |
| Optical spectral resolution (nm) 1 | 3.5 | 3.5 | 2 | 1 / 1.5 | |
| Input beam size (mm) | 6.4 | 9.6 | 10.2 | 3.3 / 6.5 | 6.5 / 12.5 |
| Max spatial resolution (μm) | 25.0 | 19.0 | 10.0 | 6.3 / 12.5 | |
| Exposure time min – max (ms) | 0.01 - 500 | ||||
| Shutter type | Global | ||||
| Detection | InGaAs 12 Bits | ||||
| PC Interface | USB 3.1 | ||||
| Dimensions (mm) | 117 x 102 x 52 | 117 x 102 x 52 / 102 x 101 x 52 | |||
Custom versions available on request.
Software

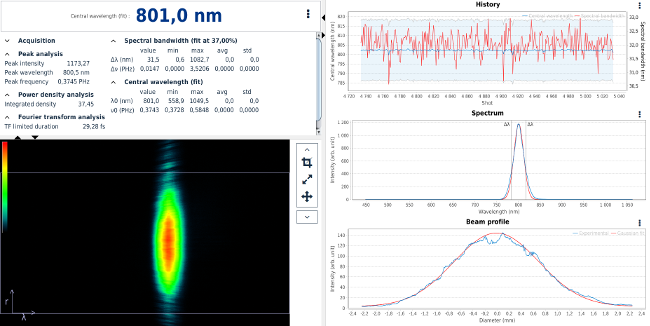

Like every Femto Easy product, the MISS comes with a powerful and very user friendly software, especially designed for touch screens, in order to give you the best user experience.
